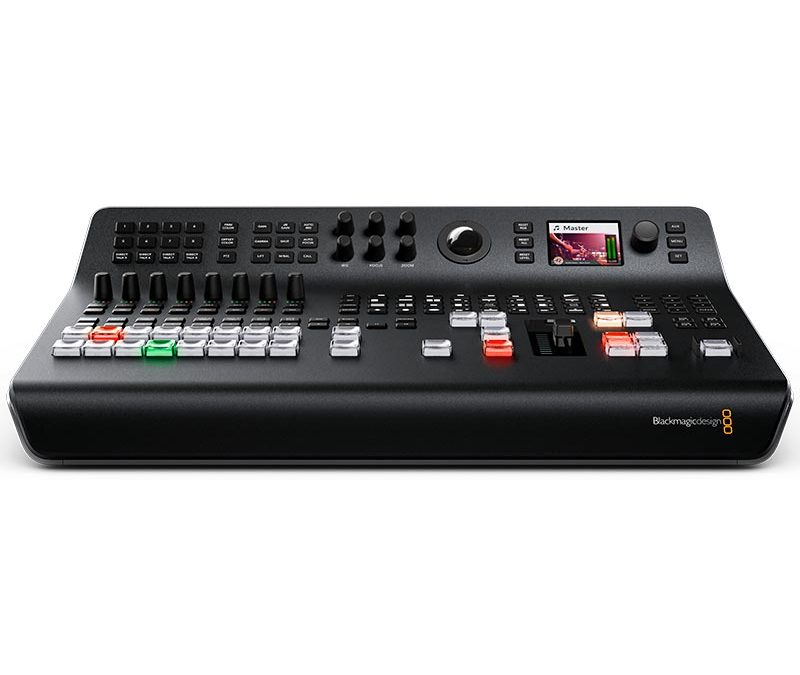

| Connections: |
| Total Video Inputs |
8 |
| Total Outputs |
8 |
| Total Aux Outputs |
1 |
| SDI Rates |
270Mb, 1.5G, 3G. |
| Total Audio Inputs |
2 x XLR. |
| Total Audio Outputs |
None, embedded audio only. |
| SDI Video Input |
4 x 10-bit SD/HD switchable. 2 channel embedded audio. |
| HDMI Video Inputs |
4 x HDMI type A, 10-bit SD/HD switchable. 2 channel embedded audio. |
| Reference Inputs |
Tri-Sync or Black Burst. |
| Video Input Re-Sync |
On all 8 inputs. |
| SDI Program Outputs |
5 x 10-bit SD/HD switchable. |
| SDI Audio Outputs |
2 Ch embedded into SDI output. |
| Multi View Monitoring |
1 |
| Multi View Video Standard |
1 x HD-SDI and 1 x HDMI |
|
| Standards: |
| SD Video Standards |
525i59.94 NTSC 4:3 or 16:9, 625i50 PAL 4:3 or 16:9 |
| HD Video Standards |
720p50, 720p59.94, 1080p23.98, 1080p24, 1080p25, |
|
1080p29.97, 1080p50, 1080p59.94, 1080i50, 1080i59.94 |
| SDI Compliance |
SMPTE 259M, 292M and 424M. |
| Video Sampling |
4:2:2 10-bit |
| Colour Precision |
4:2:2 10-bit |
| Colour Space |
4:2:2 YUV |
| HDMI Input Resolutions for Computers |
720 x 480i 59.94Hz, 720 x 576i 50Hz, |
|
1280 x 720p 59.94Hz 50Hz and 1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and |
|
1920 x1080i 50 and 59.94Hz 60Hz. |
| Colourspace Conversion |
Hardware based real time. |
| Processing Delay |
6 Lines. |
| Audio Mixer |
10 input x 2 channel mixer. |
|
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. |
|
Level and Peak metering. |
|
Master gain control. Headphone output level control with separate mix of Program, Talkback and Sidetone. |
|
| Product Specifics: |
| Upstream Keyers |
1 |
| Downstream Keyers |
2 |
| Chroma Keyers |
1 |
| Linear/Luma Keyers |
3 |
| Talkback Support |
Built in, uses aviation headset. |
| Mix Minus Support |
Yes, on 4 camera PGM outputs. |
| Transition Keyer (Stinger/DVE) |
DVE only. |
| Total Number of Layers |
5 |
| Pattern Generators |
2 |
| Colour Generators |
2 |
| DVE with 3D Borders & Drop Shadow |
1 |
| Interface |
Minimum monitor resolution of 1366 x 768. |
| Number of Windows |
1 x 10 |
| Routable Windows |
8 routable and 2 fixed for Program and Preview. |
| Tally |
Red for program and green for preview indication. |
| Tally Output |
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included) |
| Windows Source Labels |
Yes. |
|
| Multi View Monitoring: |
| Multi View Monitoring |
1 x 10 Views. |
| Multi View Video Standard |
HD |
|
| Media Player: |
| Media Players |
2, with non volatile flash memory. |
| Channels |
Fill and key for each Media Player. |
| Media Pool Still Image Capacity |
20 with fill and key. |
| Media Pool Still Image Format |
PNG, TGA, BMP, GIF, JPEG and TIFF. |
|
| Control: |
| Control Panel |
Built in with camera control. Software panel included. Supports optional broadcast panel. |
| Control Panel Compatibilty |
Includes ATEM Software Control Panel. Also compatible |
|
with ATEM 1 M/E Broadcast Panel and ATEM 2 M/E Broadcast Panel. |
| Control Panel Included |
ATEM Software Control Panel included free for Mac OS X |
|
10.11 El Capitan, Mac OS X 10.12 Sierra or later and Windows 8.1 64-bit or Windows 10 64-bit. |
|
| Software: |
| Software Updates |
Using USB connection directly connected to Mac OS X or |
|
Windows computers. Includes ATEM Switcher Utility. |
| Configuration |
Set via ATEM Software Control Panel, excluding ATEM chassis IP |
|
address which is set via the ATEM Switcher Utility connected via USB to chassis. |
|
| Operating Systems: |
| Mac |
OS X 10.10 Yosemite |
|
OS X El Capitan or later. |
| Windows |
8.1 64-bit or Windows 10 64-bit |
|
| Power Requirements: |
| Power Supply |
1 x Internal 110 – 240V AC. 4 pin 12V DC. |
| Power Usage |
40W |
|
| Physical Specifications: |
| Dimensions |
423mm x 302mm |
| Weight |
4.2kg |
|
| Environmental Specifications |
| Operating Temperature |
5deg C to 40deg C |
| Storage Temperature |
-20deg to 60deg C (-4deg to 140deg F) |
| Relative Humidity |
0% to 90% non-condensing |
|
| Warranty |
12 months limited manufacturer’s warranty. |
| Repair Policy |
Warranty details can be found in the ATEM Switchers Operation |
|
Manual in the support page at www.blackmagicdesign.com |
